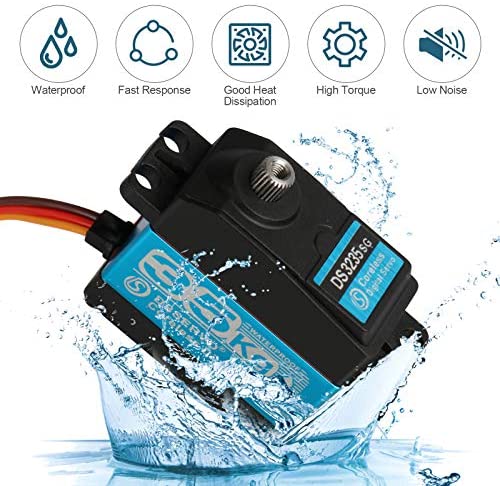

DS3235 RC metal geared servos are ideal for cars, airplanes ,and robots. High-speed big torque digital servos. Fully Water-proof, Light Weight,Stable, fast heat dissipation, sensitive and Less Noise. Power cord is longer up to 11.6inches(29.5cm), and also send with Two Double-locking 25T adjustable Metal Servo Horn: Electrical Specification: Operating voltage range: 4.8-6.8V Operating speed (5.0V ): 0.15 sec/60 degree Operating speed ( 6.8V ): 0.13 sec/60 degree Stall torque ( 5.0V ): 21kg/cm Stall torque ( 6.8V ): 35kg/cm
Control Specification: Control System: PWM (Pulse width modification) Pulse width range: 500-2500µsec Neutral position: 1500µsec Running degree: 180° (when 500-2500µsec) Dead band width: 3µsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500~2500µsec) Gear ratio: 275 Bearing: Double bearing Connector wire: 11.22inches(285mm) Motor: 3-pole(s) Waterproof performance: IP66 Motor Type: DC Motor Gear Type: Copper & Aluminum
Product Specification: Standard Dimensions: 40 * 20 * 38.5mm Weight: 80g

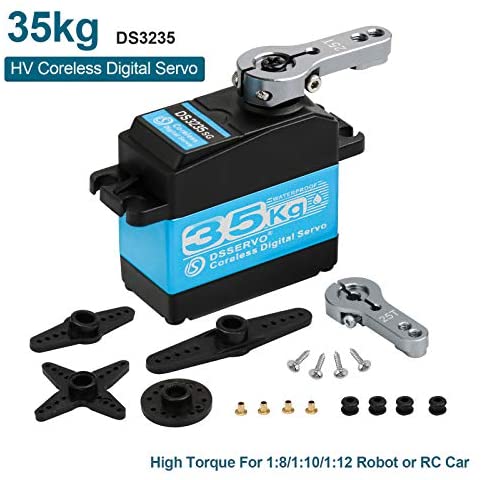

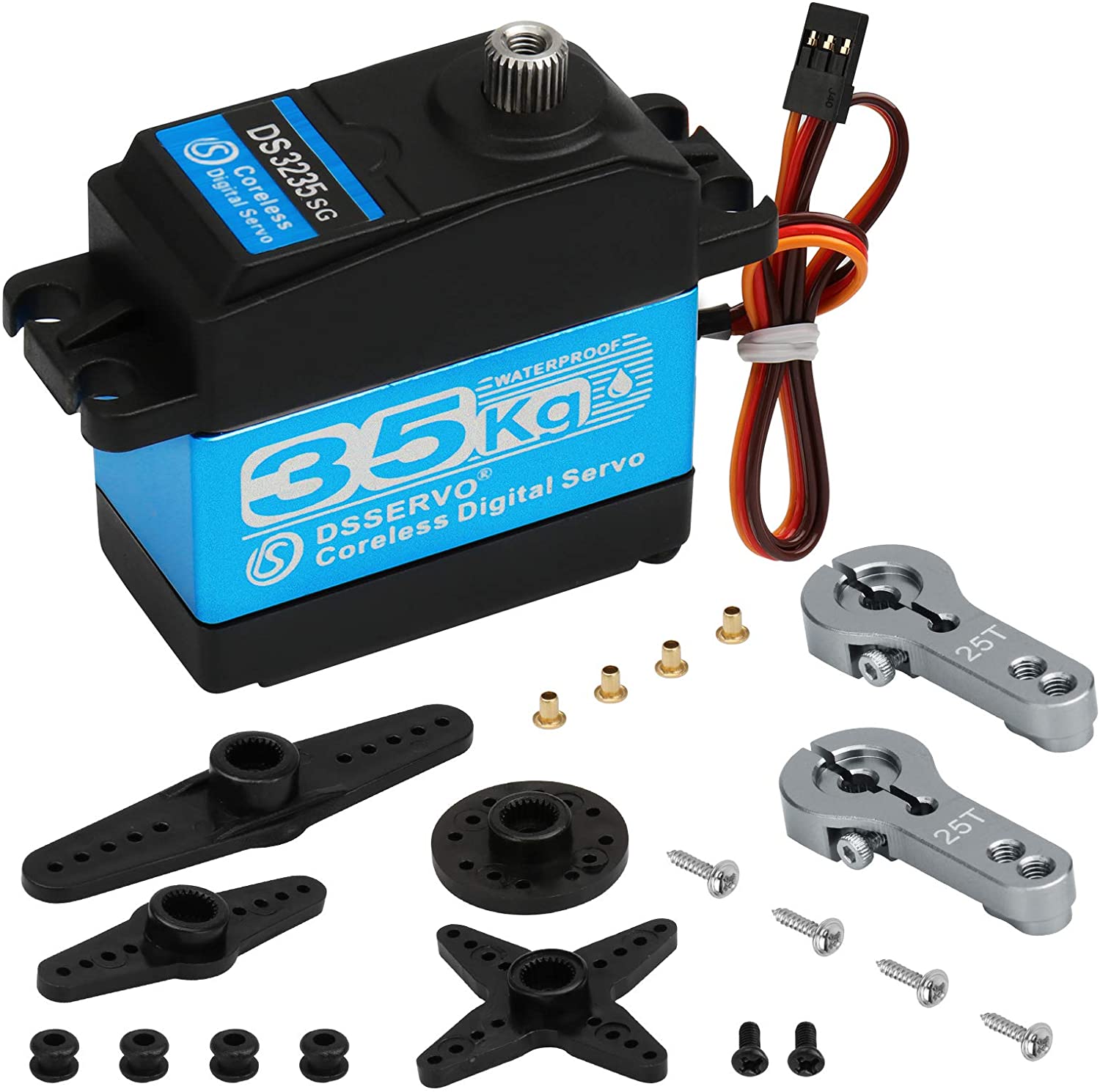

Package Including 1 x DS3235 35kg Digital Servo 2 x 25T Adjustable metal servo arm 1 x Accessories set as shown
