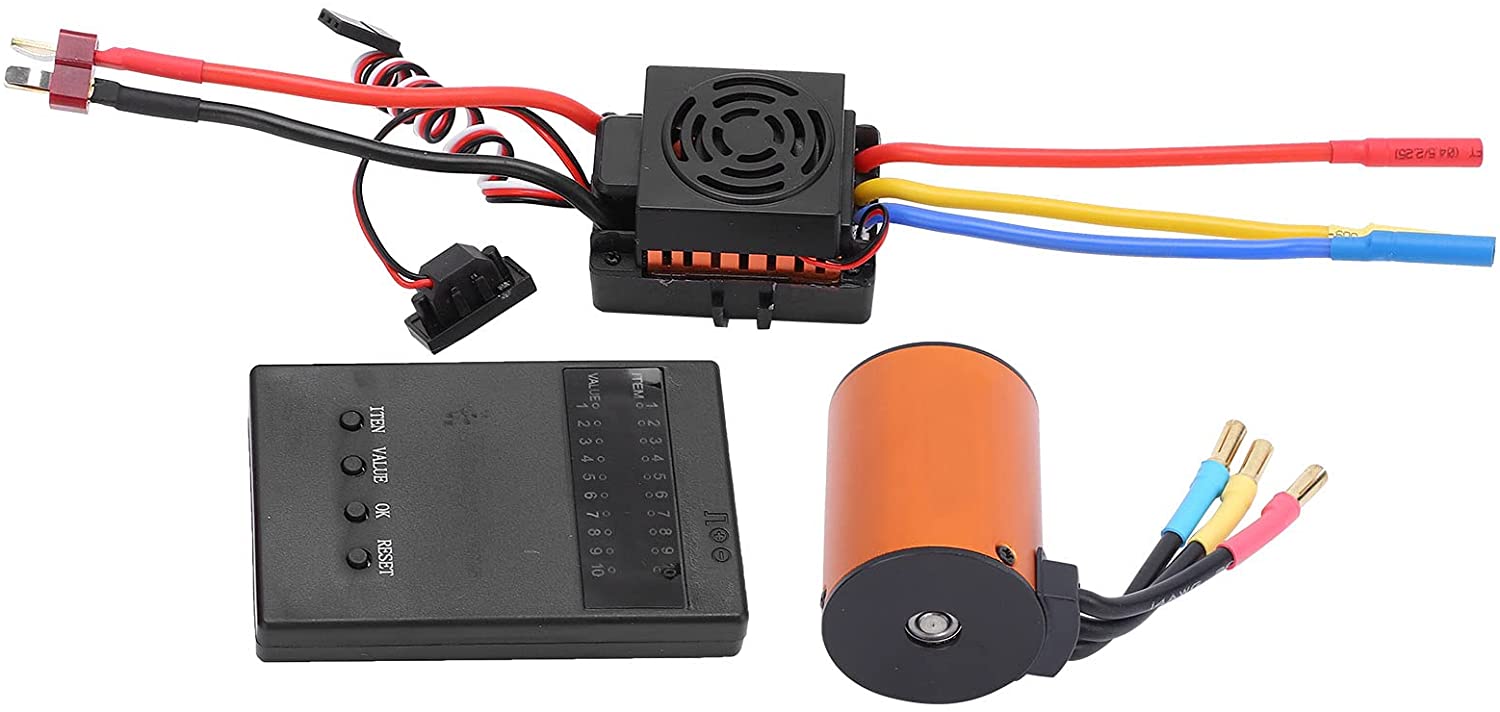

Waterproof 3650 3500KV Brushless Motor 60A ESC Programming Card Combo Set for 1/8 1/10 RC Car Truck

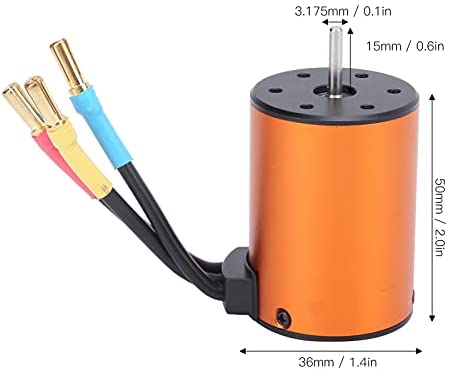

How to Use: 1. Connect the BEC cable to the receiver. 2. Connect the motor lead to the ESC. 3. Turn on the transmitter. 4. Connect the battery pack to the ESC, and then turn on the ESC. 5. After the connection of the motor and the battery is completed, the motor will emit a beep sound. 6. When the throttle stick is in the neutral position, the motor will beep again. 7. ESC is available. Specification: Item Type: 3650 3500KV Brushless Motor + 60A ESC + Programming Card Combo Material: Aluminum Alloy + Copper + Plastic Product Color: As Pictures Shown  Product Weight: Approx. 316g / 11.2oz Compatible: Fit for 1/8 1/10 RC Car Motor Parameters: Diameter: Approx. 36mm / 1.4in Length: Approx. 50mm / 2.0in Shaft Length: Approx. 15mm / 0.6in Shaft Diameter: Approx. 3.175mm / 0.1in Wattage: 900W Maximum Voltage: <12V Maximum Amperage: 75A KV (rpm/volt): 3500KV Maximum Speed: 50000 Plug Type: 4mm Golden Banana Plug ESC Parameters: Continuous Current: 60A Peak Current: 360A Applicable Power Supply: 2-3S LiPo / 4-9S NiMh (not included) Bec: 5.8V / 3A Power Plug: T Plug male connector Programming Card Parameters: Low Voltage Cut-off: 3.7V / 3.6V / 3.5V / 3.4V / 3.3V / 3.2V / 3.1V / 3.0V / 2.9V / 2.8V / 2.7V / 2.6V Startup Mode: Medium/soft/strong Maximum Braking Force: 50%, 25%, 75%, 100% (25A, 35A, 45A, 60A), 25%, 50%, 75%, 100% (80A, 120A) Maximum Reverse Force: 25%, 50%, 75%, 100% Neutral Range: 9%, 6%, 12% Working Status Package List: 1 x Motor 1 x ESC 1 x Programming card 1 x Manual
