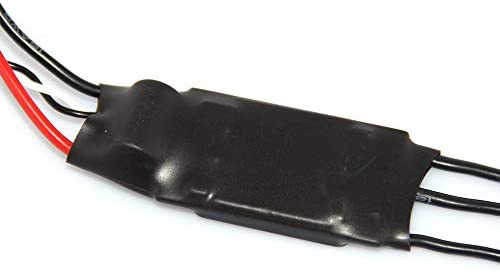

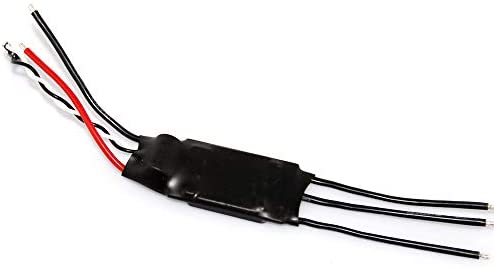

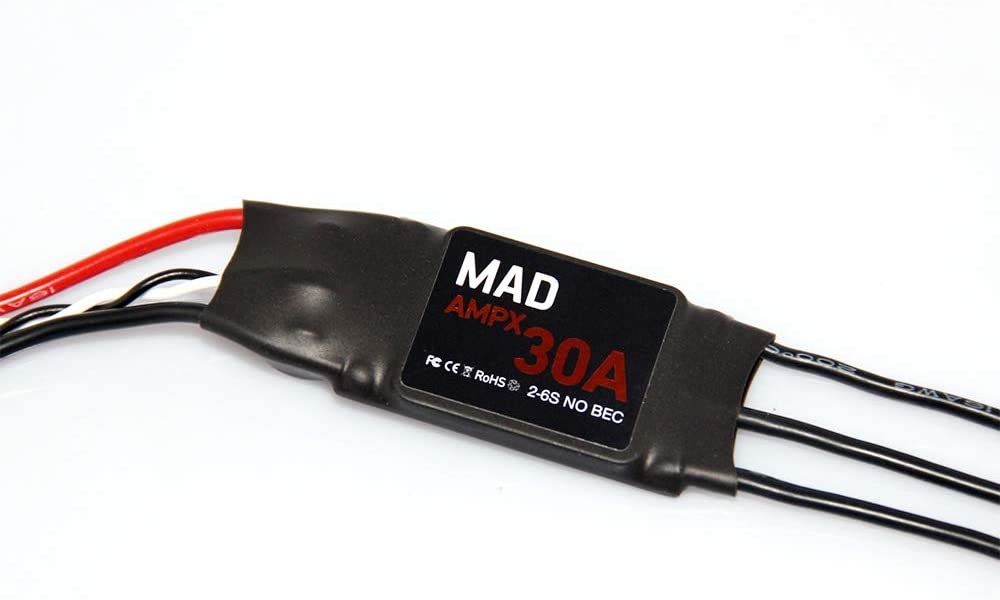

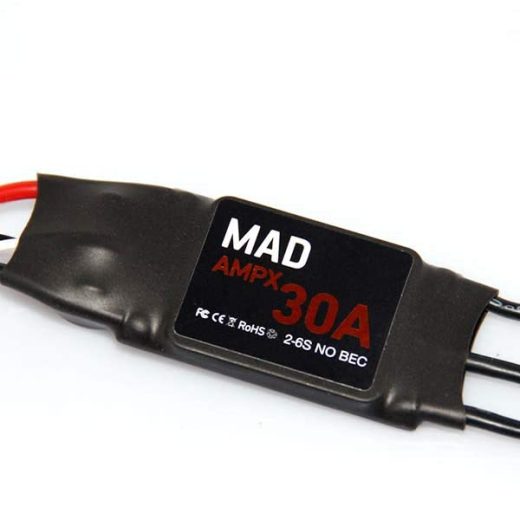

30A ESC (2-6S) MAD COMPONENTS 22g Drone Motor Controller for rc Drone 550/650 Quadcopter Multi-Rotor

Specifications Model: AMPX 30A Max. Continuous Current: 30A -40A Peak Current (10 secs.}: 50A-60A BEC: not available LiPo: 2-6S Programmable Timing: Medium/High Weight: 22 g Size (L x W x H): 68.0 x 25.0 x 7.0 [mm] Throttle signal is PWM. cable length:75cm

New core software for multirotor controllers with improved throttle response Excellent compatibility with high pole type motors like MAD motors or T-MOTOR motors

Simple timing selectable. Crosstalk reduction of signal transmission. Compatibility with wide range of flight controllers. Signal frequency can get 621Hz.

How to make the Throttle Calibration:1.Turn on the transmitter,move the throttle stick to the top position.2.Ensure the transmitter and receiver are well bound, and then connect the ESC to the battery.

3.After the motor emits two short beep-beep,move to the bottom position in 3 seconds.4.Throttle calibration competed.
